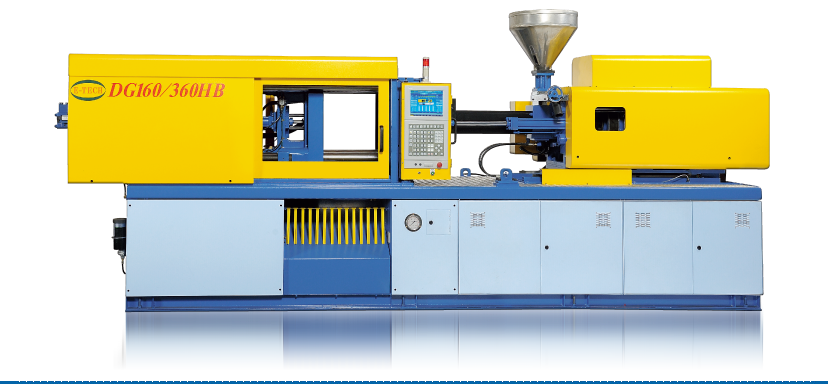

The DG-HB hybrid injection molding machine combine a servo-hydraulic motor with two electric servo motors. The movements of clamping unit and nozzle are driven by the servo-hydraulic motor, injection and metering are driven by the electric servo motor. The purpose is achieved well between economics and precision.
Three axis control of servo motor.
Two axis control with electric servo motor for injection and metering, the other one axis with servo-hydraulic motor for hydraulic driven.
The DG-HB is provided high-speed and low speed injection to product parts in all respects except saving power.
Reduce rejects because of injection and metering by high performance servo motor and driven unit.
Save money for purchase, because the hybrid IMM productive quality is all the same as full electric IMM.
LED touch panel and operating panel can operate together.
Power consumption can display on the LED screen.
Neatly Clean Opposite Side: All the hydraulic pipes and electric wires are integrated into the machine base with protective cover for cleaning easily.
High rigid mold platen.
The tie-bars are free of contamination with lubricants because of no tie-bar sleeves.
The moving platen is provided by linear guides, reduce friction, more precision movement of mold closing and opening.
12.1 inch LED display with intelligent touch panel, combine the operating panel to operate possibly.
Mold data storage via USB storage device is possible.
Purge guard for preventing melt spill out.
Injection is allowed at purge guard closed.
Hopper forward and backward by a hand-wheel.
Fast and easy move hopper out to empty remained.
